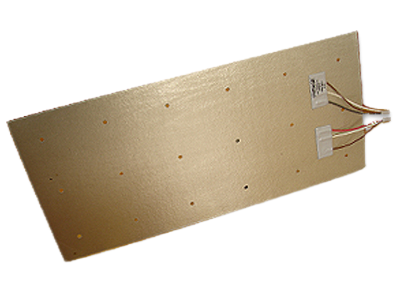

Mica heater
Mica heaters consist of an etched foil element sandwiched between layers of mica. Installed by clamping to heat sinks, mica heaters provide the ultimate temperature and wattage capability for fast warm up.
Mica heaters consist of an etched foil element sandwiched between layers of mica. Installed by clamping to heat sinks, mica heaters provide the ultimate temperature and wattage capability for fast warm up.
Specification:
|
Sheath material |
Mica |
|
Thickness |
0.8mm～4.2mm |
|
Operating temperature (max.) |
550℃(long time)/600℃(short time) |
|
Operating temperature (min.) |
-60℃ |
|
Watt density (max.) |
7.8W/CM2 |
|
Dielectric strength |
1500v/5s |
|
Tolerance |
±2%～±10% |
