Polyimide heater

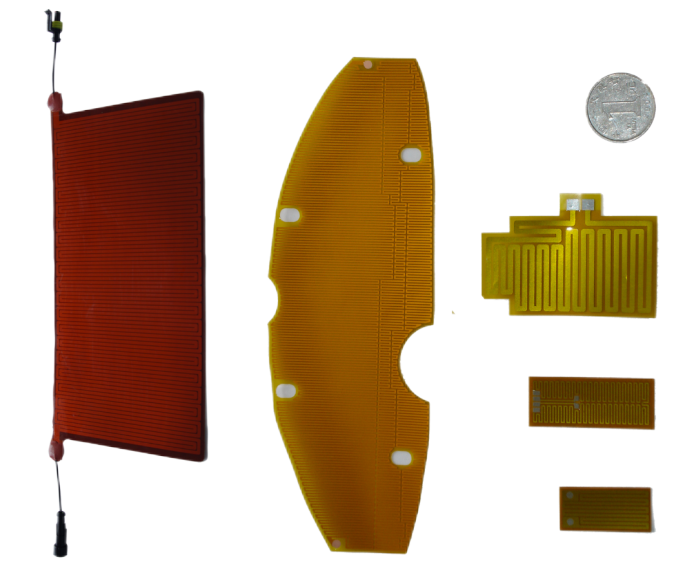

Polyimide heaters | Kapton heaters are thin, light weight heaters, thickness 0.08mm-0.2mm, operating temperature (max) 200℃ - long time / 250℃ - short time.
Features:
● Light weight, thin, flexible
● Very small size available
● Fast and efficient thermal transfer
● Uniform thermal performance of the heating output
● Suitable for vacuum environments
Specifications:
|
Category |

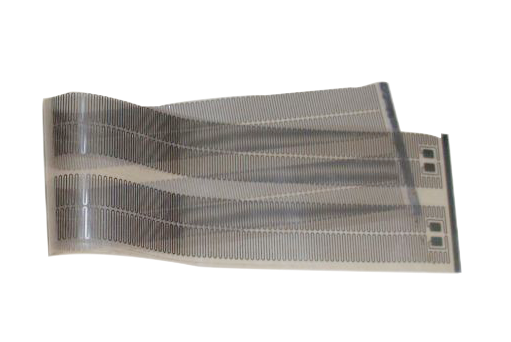

PET heating film |
Polyimide heating film |
|
Insulating Material |
PET |
Polyimide |
|
Thickness |
0.08mm~0.2mm |
0.08mm～0.2mm |
|
Operating temperature (max.) |
100℃ |
180℃(long time)/300℃(short time） |
|
Operating temperature(min.) |
-20℃ |
-192℃ |
|
Watt density(max.) |
2.5W/CM² |
7.8W/CM² |
|
Tolerance |
±2%～±10% |
±2%～±10% |
|
Dielectric strength |
1200v/5s |
1200v/5s |
|
Size |
MAX:100000mm*600mm, MIN:20mm*20mm |
MAX:1000mm*600mm, MIN:20mm*20mm |
