RV (Recreational Vehicle) Air Conditioner

The RV air conditioner primarily consists of a compressor, evaporator, condenser, condenser fan, evaporator fan, and auxiliary cooling components such as a capillary tube and filter drier. During operation, the interior air of the RV circulates via the evaporator fan. Hot air inside the vehicle is drawn in from the bottom by the evaporator fan, cooled by the low-temperature refrigerant flowing through the evaporator, and then discharged from the upper outlet to lower the cabin temperature. The low-temperature, environmentally friendly refrigerant absorbs heat, is compressed by the compressor, and releases heat through the condenser. The condenser and its fan then discharge the absorbed heat into the external environment.

The air conditioner uses a switching system design, with a multifunction control board precisely regulating compressor start/stop via a return-air temperature sensor. During automatic cooling, the condenser fan adjusts speed according to the condenser temperature.Normal operating conditions:Cooling: -5ºC to +43ºC,Relative humidity: 5%–95%,Storage temperature: -20ºC to +60ºC.

Product Features:

◆Rated cooling capacity: 2.4–3.2 kW.

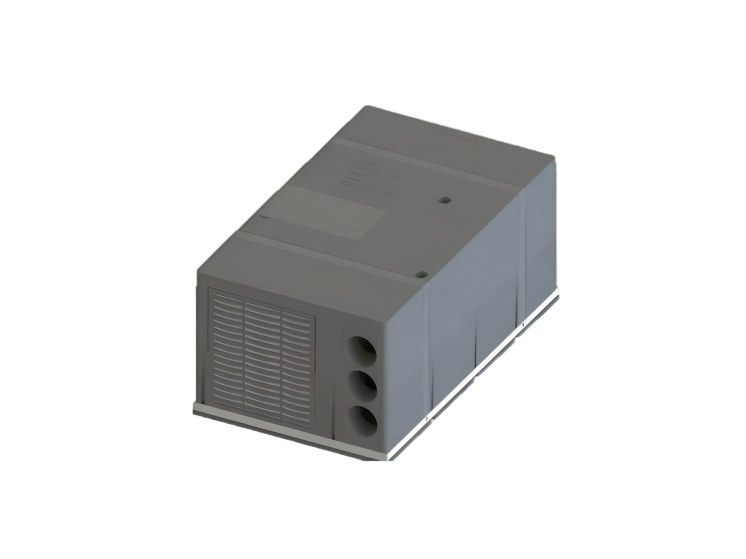

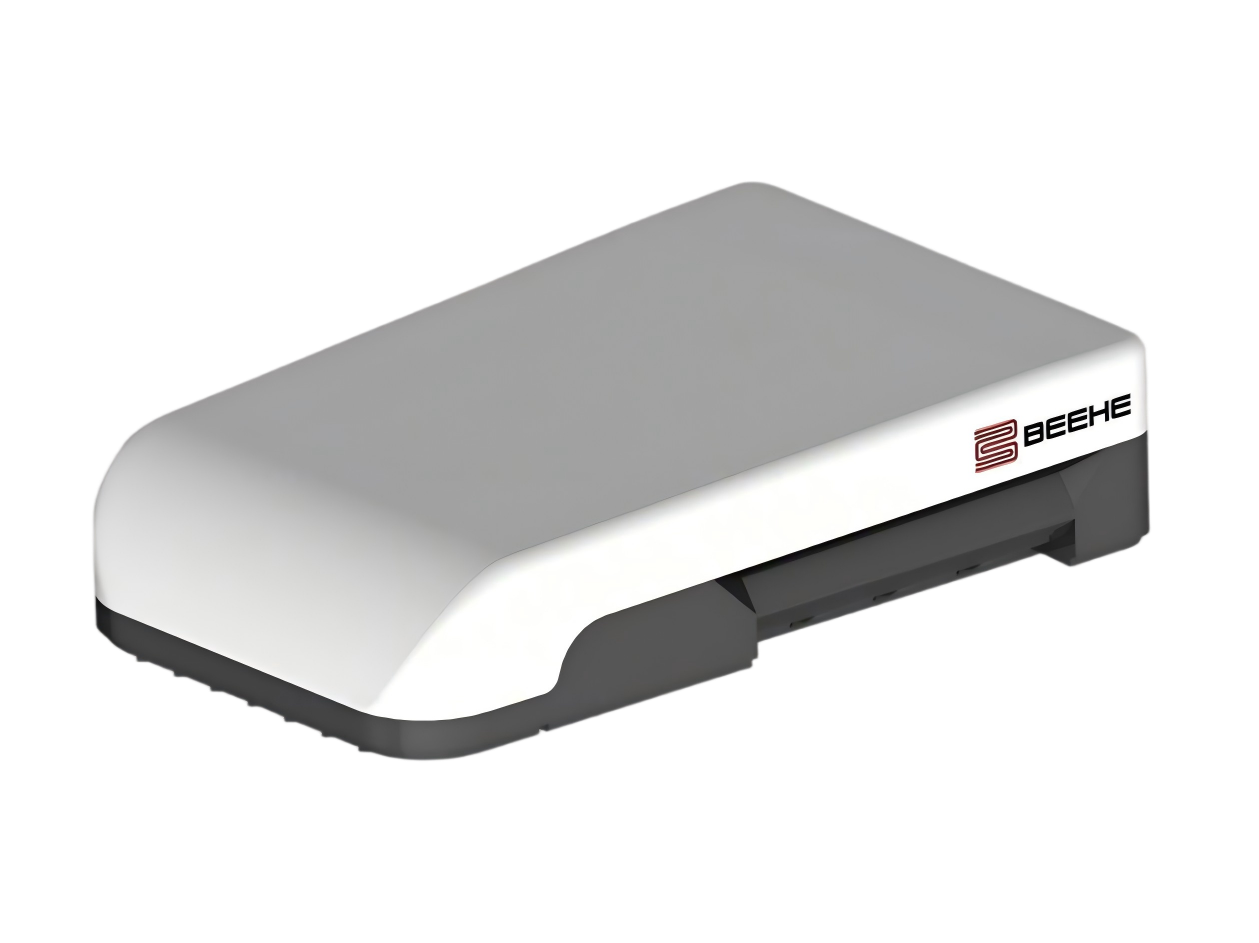

◆Top-mounted or bottom-mounted installation options.

◆Equipped with internationally renowned brand compressors, ensuring a 10-year system lifespan.

◆Variable-frequency or fixed-frequency cooling system, automatically adjusting cooling based on load.

◆Integrated, compact design for space-efficient installation.

RV (Recreational Vehicle) Air Conditioner Technical Specification:
