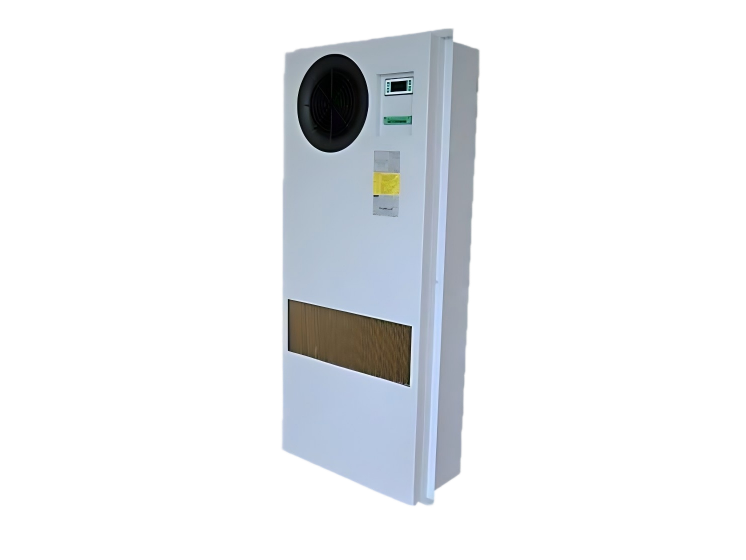

Air-to-Air Heat Exchanger

The air-to-air heat exchanger primarily consists of a sheet metal casing, heat exchange core, internal circulation fan, external circulation fan, and control board. During operation, the internal and external fans drive the airflow: hot indoor air and cold outdoor air enter the heat exchange core from the top and bottom respectively, where heat is effectively transferred. The cooled indoor air then exits from the lower outlet back into the cabinet, ensuring optimal cooling for the equipment. The specially designed core and integrated structure provide sufficient heat exchange while completely isolating the indoor and outdoor air, effectively protecting the cabinet environment from adverse external conditions.

Product Features:

◆Rated cooling capacity: 40 W/K – 250 W/K.

◆Equipped with internationally renowned brand fans, ensuring a 10-year system lifespan.

◆Variable frequency fan control allows automatic cooling adjustment based on load.

◆Integrated, compact design for space-efficient installation.

Air-to-Air Heat Exchanger Technical Specification:
