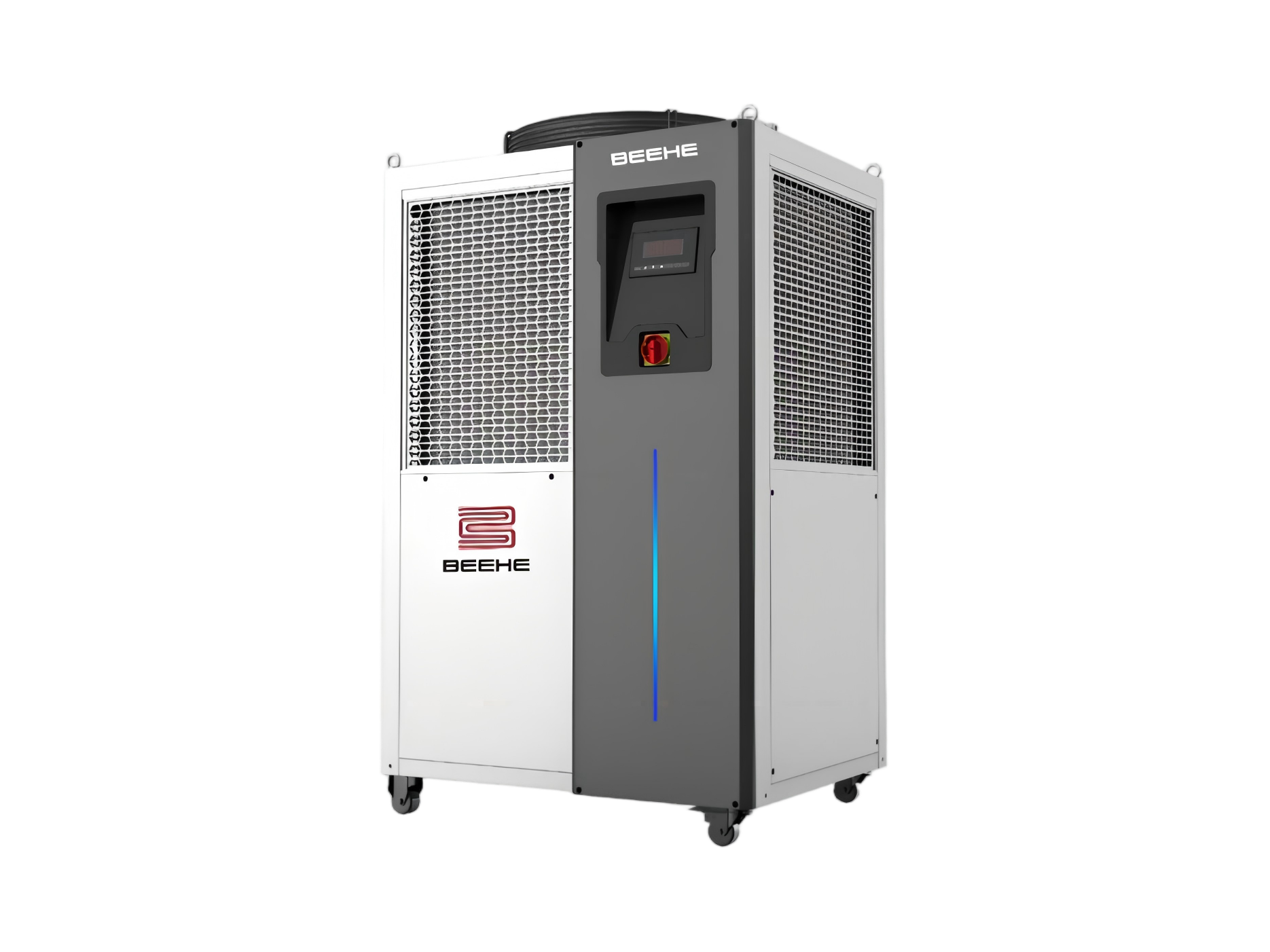

Industrial Chiller
Industrial chillers primarily consist of a compressor, condenser, filter-drier, expansion valve, evaporator, fan, controller, and sheet metal enclosure. The product is designed to supply chilled water for industrial applications.
During operation, high-temperature, high-pressure refrigerant gas compressed by the compressor flows into the condenser. After exchanging heat with ambient air, it becomes a high-pressure, ambient-temperature liquid. The high-pressure liquid passes through the filter-drier, then is throttled and depressurized by the expansion valve, forming a low-temperature, low-pressure liquid. It then enters the evaporator to cool the circulating water. After absorbing heat, the refrigerant becomes a low-pressure, ambient-temperature gas and is drawn back into the compressor, completing the refrigeration cycle. Driven by the pump, chilled water (or coolant) flows from the evaporator to a water tank and is then pumped into the equipment to be cooled, absorbing heat from it. The warmed chilled water (or coolant) returns to the evaporator to be cooled again, forming a complete chilled water cycle.
PRODUCT FEATURES:
◆Cooling capacity range: 3–40 kW.
◆Air-cooled heat dissipation design, requiring no external cooling water for flexible and convenient operation.
◆High-efficiency scroll compressor ensures long service life and excellent energy efficiency.
◆Uses environmentally friendly refrigerant.
◆Compact and space-saving design suitable for a wide range of applications.
INDUSTRIAL CHILLER TECHNICAL SPECIFICATION:
|
Model |
LSJ3-LT0D-D000 |
LSJ6-LT0D-D000 |
LSJ8-LT0D-D000 |
LSJ14-LT0D-D000 |
LSJ17-LT0D-D000 |
LSJ26-LT0D-D000 |
LSJ38-LT0D-D000 |
|
|
Cooling Capacity |
P |
1 |
2 |
3 |
5 |
8 |
10 |
15 |
|
Cooling Capacity |
kW |
3 |
5.6 |
8 |
13.9 |
17.1 |
26.2 |
37.8 |
|
kCal/h |
2605 |
4824 |
6896 |
11952 |
14660 |
22545 |
32466 |
|
|
COP |
3 |
2.8 |
3.1 |
3.3 |
2.7 |
3.2 |
3.2 |
|
|
Power Supply |
220V/50Hz |
220V/50HZ |
220V/50Hz |
3PH-380V/50Hz |
3PH-380V/50Hz |
3PH-380V/50Hz |
3PH-380V/50Hz |
|
|
Compressor |
Type |
Hermetic Compressor |
Hermetic Compressor |
Hermetic Compressor |
Hermetic Flexible Scroll Compressor |
Hermetic Flexible Scroll Compressor |
Hermetic Flexible Scroll Compressor |
Hermetic Flexible Scroll Compressor |
|
Quantity |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
|
Power(kW) |
0.92 |
1.77 |
2.38 |
3.71 |
5.41 |
7.42 |
10.81 |
|
|
Refrigerant |
R410A |
R410A |
R410A |
R410A |
R410A |
R410A |
R410A |
|
|
Condensor |
Type |
High-Efficiency HEX |
High-Efficiency HEX |
High-Efficiency HEX |
High-Efficiency HEX |
High-Efficiency HEX |
High-Efficiency HEX |
High-Efficiency HEX |
|
Quantity |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
|
External Rotor Fan Power(W) |
85 |
180 |
249 |
449 |
825 |
825 |
923 |
|
|
Ambient Temperature Range |
15~45℃ |
15~45℃ |
15~45℃ |
15~45℃ |
15~45℃ |
15~45℃ |
15~45℃ |
|
|
Evaporator |
Type |
Tank Coil |
Tank Coil |
Tank Coil |
Tank Coil |
Tank Coil |
Tank Coil |
Tank Coil |
|
Chilled Water Flow Rate (m³/h) |
0.45 |
0.98 |
1.29 |
2.18 |
3.37 |
4.3 |
6.7 |
|
|
Quantity |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
|
|
Water Tank |
Volume (L) |
30 |
40 |
90 |
100 |
180 |
180 |
250 |
|
Dimensions(mm) |
296*324*328 |
323*298*448 |
582*328*478 |
631*348*478 |
784*448*518 |
928*378*518 |
1078*448*518 |
|
|
Pump |
Rated Power (kW) |
0.37 |
0.37 |
0.55 |
0.75 |
1.5 |
1.5 |
1.5 |
|
Rated Flow Rate (m³/h) |
1.5 |
1.5 |
2 |
4 |
5 |
5 |
10 |
|
|
Rated Head (m) |
25 |
25 |
30 |
31 |
40 |
40 |
30 |
|
|
Expansion Method |
Capillary Throttle Tube |
Capillary Throttle Tube |
Capillary Throttle Tube |
Thermal Expansion Valve |
Thermal Expansion Valve |
Thermal Expansion Valve |
Thermal Expansion Valve |
|
|
Pipe Connections |
Chilled Water Inlet/Outlet(DN) |
15 Female Thread |
25 Female Thread |
25 Female Thread |
25 Female Thread |
25 Female Thread |
25 Female Thread |
40 Female Thread |
|
Make-up / Overflow Port (DN) |
15 Female Thread |
15 Female Thread |
15 Female Thread |
15 Female Thread |
15 Female Thread |
15 Female Thread |
15 Female Thread |
|
|
Net Weight (kg) kg |
72 |
95.5 |
116.5 |
148.5 |
204 |
250 |
324 |
|
|
Gross Weight (kg) |
88 |
122 |
139 |
170 |
232 |
287 |
362 |
|
|
Dimensions (L × W × H, mm) |
500*590*900 |
550*700*1280 |
580*700*1320 |
615*745*1520 |
790*895*1700 |
1000*770*1620 |
1150*920*1770 |
|
