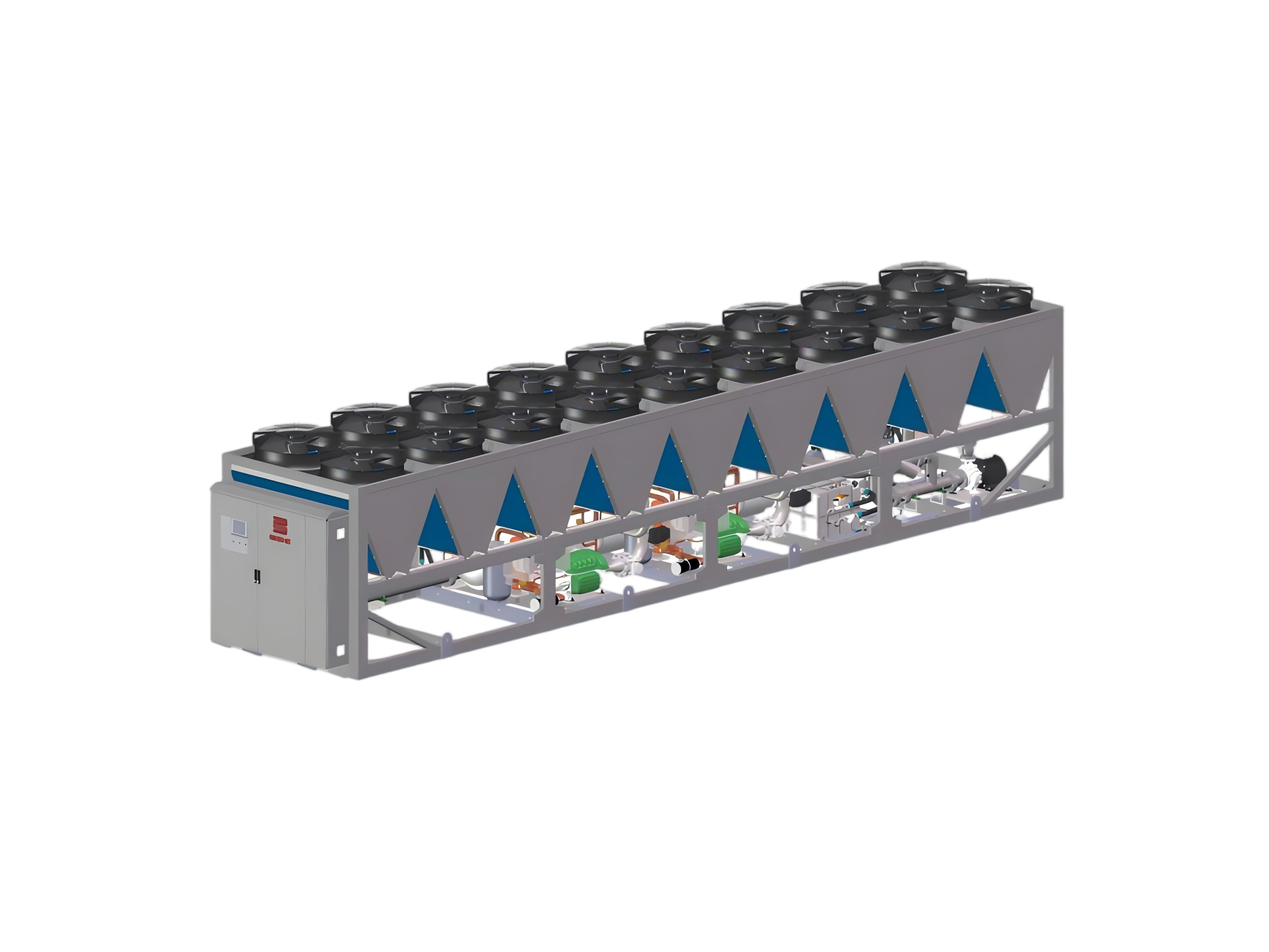

Air-Cooled Magnetic Bearing Chiller

The air-cooled chiller is specifically developed to support data center applications. It consists of key components including a compressor, condenser, evaporator, filter drier, expansion valve, fans, water pump, dry cooler, controller, and metal frame. During operation, low-temperature, low-pressure refrigerant vapor is compressed by the compressor into high-temperature, high-pressure gas and then flows into the condenser, where it exchanges heat with ambient air and condenses into a high-pressure, medium-temperature liquid. After passing through the filter drier, the refrigerant flows through the expansion valve for throttling and pressure reduction, forming a low-temperature, low-pressure gas–liquid mixture, which then enters the evaporator to cool the circulating water. After absorbing heat, the refrigerant returns to a low-temperature, low-pressure gaseous state and is drawn back into the compressor, completing the refrigeration cycle. Driven by the pump, chilled water flows from the evaporator to the cooling equipment to absorb heat, then returns to the evaporator for cooling, forming a complete chilled-water circulation loop.

PRODUCT FEATURES:

◆ Magnetic bearing oil-free technology eliminates mechanical friction, with motor efficiency exceeding 98%.

◆ Fll inverter (VFD) control enables precise load adjustment from 10% to 100%.

◆ Long service life of core components (magnetic bearing design life over 20 years) with low failre rate.

◆ Environmentally friendly R1234ze refrigerant, compliant with international RoHS standards, spporting 24/7 continuous operation.

◆ Highly integrated strcture with ample maintenance space.

◆ No cooling water piping reqired, reducing footprint by up to 40%

◆ Modlar design supports multi-unit parallel operation and scalable capacity expansion

◆ Optional atomatic refrigerant charging function to reduce operational risks

◆ PLC-based intelligent control system with local tochscreen operation and remote monitoring.

◆ RS485 and Ethernet commnication interfaces.

◆ Spports Modbus RTU, Modbus TCP/IP, and SNMP communication protocols.

◆ Redndant control components enable continued operation during minor faults.

◆ Optional ATS spports dual power supply input for enhanced system reliability.

AIR-COOLED MAGNETIC BEARING CHILLER TECHNICAL SPECIFICATION:
