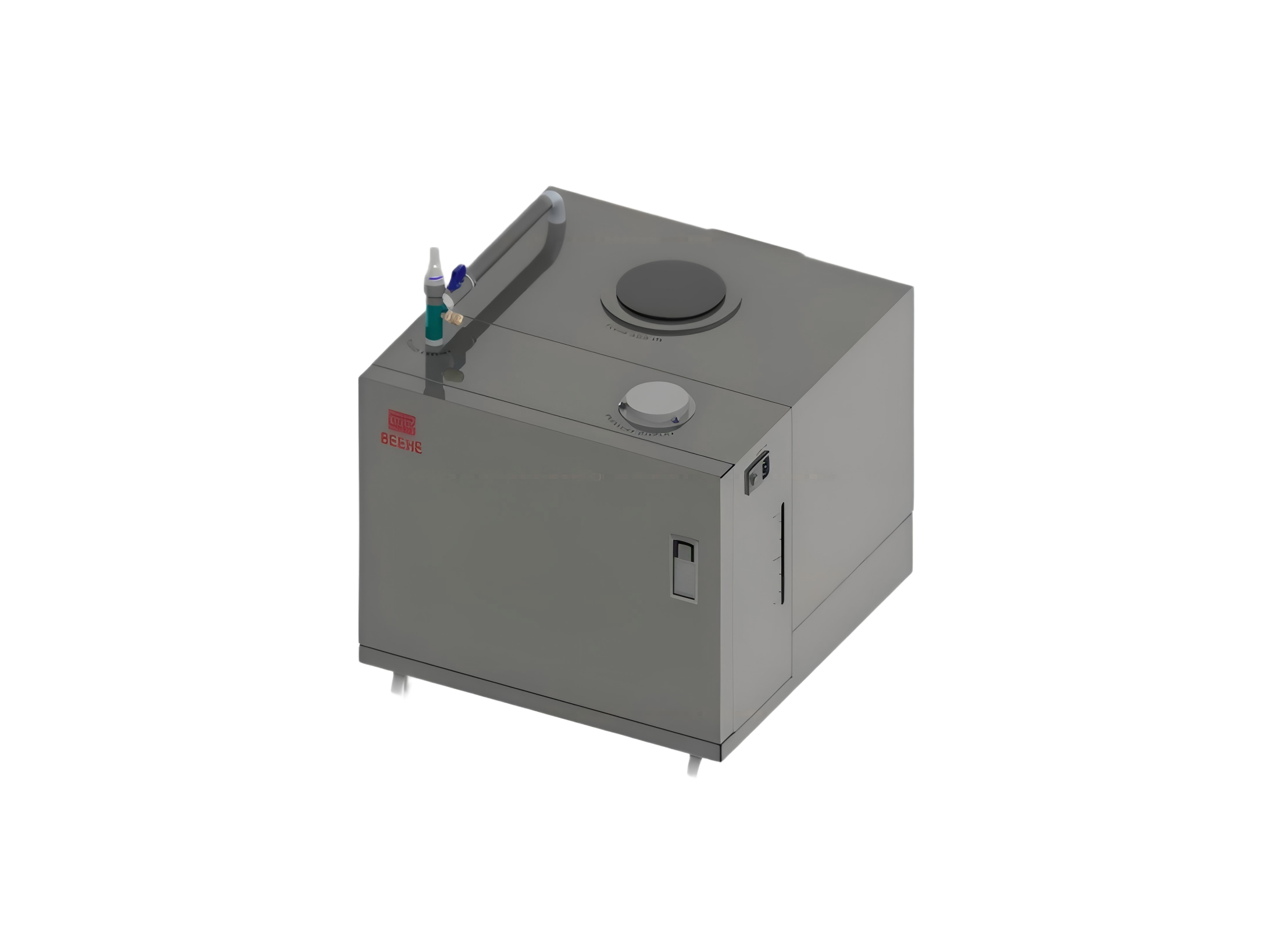

Universal Filling Station
The universal filling station consists of a solution tank, a self-priming pump, a pressure gauge with protective functions, a housing, and accessories. After powering on, the self-priming pump draws the solution from the tank and injects it into the liquid cooling system via the attached filling pipeline. When the filling pressure reaches the preset value, the pump automatically stops to ensure system safety.
PRODUCT FEATURES:
◆ Compact and flexible, suitable for initial filling and solution replenishment in liquid cooling systems across various application scenarios.
◆ Integrated filling pressure protection to prevent damage to the liquid cooling system caused by excessive filling pressure.
◆ UQD04 filling interface for convenient and quick operation.
◆ Bypass manual valve design to meet the requirements of products needing small flow rates and low-pressure filling.
◆ Wide input voltage range to accommodate use in different countries.
UNIVERSAL FILLING STATION TECHNICAL SPECIFICATION:
|
Tank Capacity |
15L |
|
Input Voltage |
90-264VAC 50&60Hz |
|
Rated Power Consumption |
≤84W |
|
Filling Flow Rate |
11.2lpm |
|
Suction Lift |
Approx. 1.2 m |
|
Available Pressure Head |
2Bar |
|
Filling Hose Specification |
φ12 mm (ID) / 3m |
|
Fluid Connector |
UQD04 |
|
Power Connector |
C20 |
|
Power Cable |
Standard US power Plug ,optional |
|
Operating Temp. |
5~45℃ |
|
Fluid Temp. |
5~60℃ |
|
Dimensions (L × W × H) |
450x510x403mm |
|
Compatible Fluid Types |
Pure Water, Ethylene Glycol or Propylene Glycol Solution（PG25/EG25） |
|
Exterior Color |
RAL7035 |
