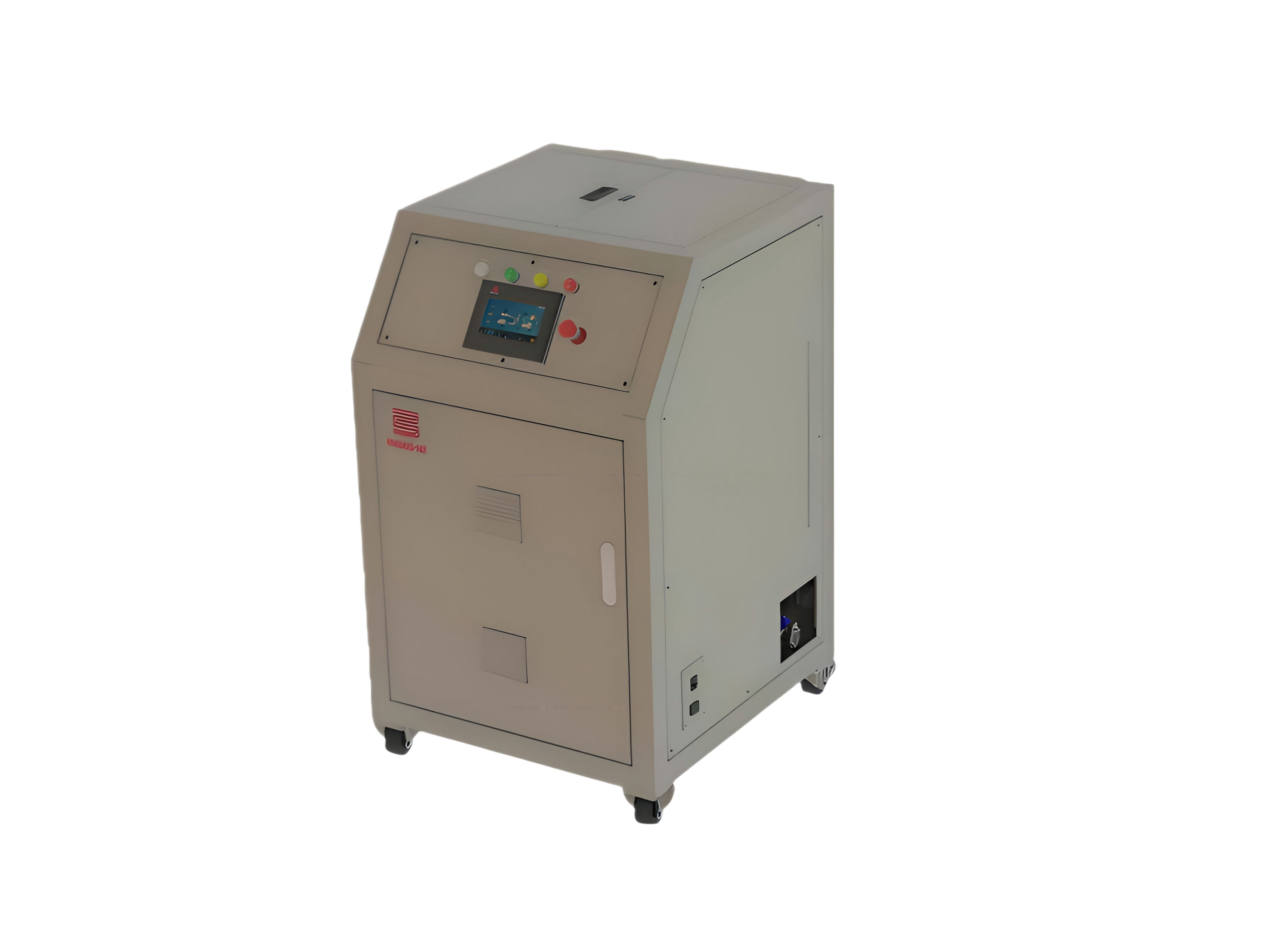

Mobile Refilling Cart

The mobile refilling cart consists of a solution tank, a self-priming pump, a circulation pump, a filter, a control system, a housing, and accessories. The cart uses its self-priming pump and piping attachments to draw solution from external drums into its own solution tank. It is equipped with eight refilling ports and a return port. Using matched hose assemblies, it can connect to liquid-cooled servers, rack-mounted CDUs, or liquid cooling cabinets, allowing simultaneous refilling of up to eight liquid cooling systems. The cart's built-in touchscreen enables users to start or stop the refilling process and visually monitor changes in the tank's solution level. The circulation pump continuously supplies solution to the liquid cooling systems. A flow indicator at the return port provides a clear visual indication of whether the refilling process is complete.

PRODUCT FEATURES:

◆ Mobile design for easy and flexible deployment.

◆ Capable of simultaneously refilling up to eight liquid cooling systems or components.

◆ Integrated automatic tank refilling function; its built-in transfer pump enables rapid tank replenishment.

◆ Integrated refilling pressure protection to prevent damage to liquid cooling systems from excessive pressure.

◆ Integrated 25 µm filter to prevent impurities from entering the liquid cooling systems.

◆ All SUS304 stainless steel fluid path, compatible with PG25 solution for wetted materials.

◆ UQD08 refilling interfaces for convenient and quick operation.

◆ Wide input voltage range for use in different countries.

MOBILE REFILLING CART TECHNICAL SPECIFICATION:
