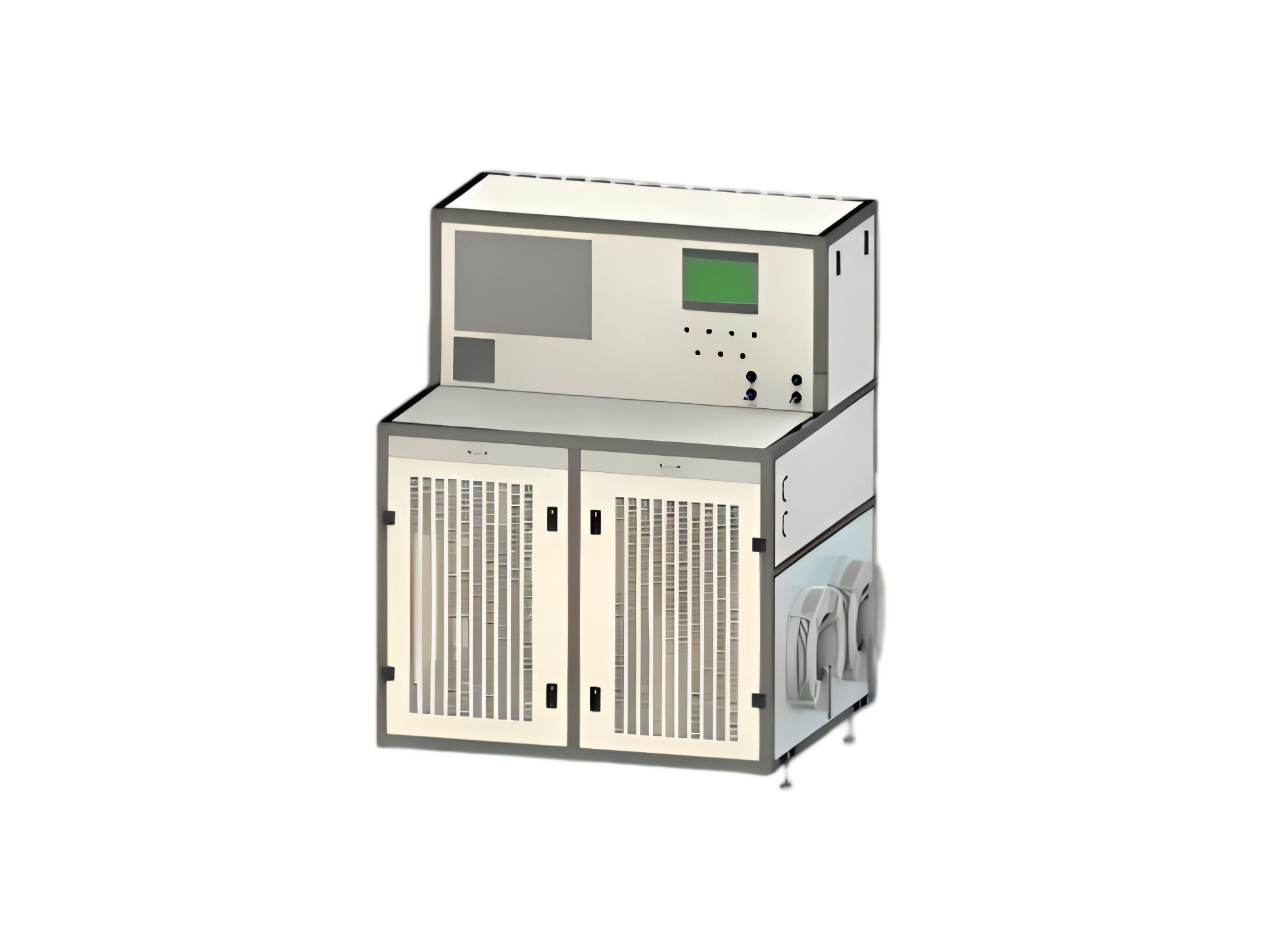

Cold Plate Performance Test Platform
This platform is designed to evaluate the flow resistance and thermal resistance of server cold plates. It integrates temperature, pressure, and flow regulation and monitoring modules, simulated heat sources, and adjustable heat source voltage control. The system offers a maximum heat dissipation capacity of 10 kW, a flow rate adjustment range of 0.3–15 L/min, and temperature control accuracy of ±0.5°C.The platform is equipped with dual test interfaces, enabling simultaneous testing of two cold plates or independent testing of individual units for thermal or flow resistance. It features a compact structure, user-friendly operation, high system integration, precise instrumentation, and excellent operational reliability.
The system is controlled by a Siemens PLC and is equipped with a 7-inch display and a 21-inch LCD monitor for real-time monitoring of all test parameters and result evaluation. The integrated computer is pre-installed with host software.
PRODUCT FEATURES:
◆Supports simultaneous testing of two cold plates or individual cold plate testing.
◆Temperature control accuracy of ±0.5°C ensures high data reliability.
◆Broad flow rate adjustment range of 0.3–15 L/min.
◆Dual-pump setup (one active, one standby) enhances system reliability.
◆Buffer tank and heater ensure precise temperature control.
◆PWM-controlled fan provides high airflow with low noise.
◆Flexible setting of supply liquid temperature and flow rate.
◆Test interfaces use threaded connections for easy assembly and maintenance.
◆21-inch display facilitates convenient data reading and parameter setting.
◆Control via PLC or host software, with integrated pressure, temperature, flow rate, and humidity monitoring.
◆Alarm mechanism assists maintenance personnel in quickly identifying and locating system anomalies.
COLD PLATE PERFORMANCE TEST PLATFORM TECHNICAL SPECIFICATION:
|
Cold Plate Flow Resistance & Thermal Resistance Test Equipment |
||
|
Height (mm) |
2000 |
|
|
Width(mm) |
1600 |
|
|
Depth(mm) |
1300 |
|
|
Operating Conditions |
||
|
Rated Cooling Capacity (kW) |
10 |
|
|
Operating Description |
Primary Side |
Secondary Side |
|
Coolant Type |
R407C |
纯水 |
|
Air Flow / Flow Rate (m³/h / LPM) |
2*3000/2*50000 |
0.9/15 |
|
Rated Inlet Temperature (°C) |
15 |
75 |
|
Rated Outlet Temperature (°C) |
25 |
65 |
|
Air Flow Direction |
Right-side intake, front/rear exhaust |
|
|
Temperature Adjustment Range (°C) |
30~65 |
|
|
Secondary Side Filter (µm) |
50 |
|
|
Temperature Control Accuracy (°C) |
±0.5 |
|
|
Heater Power (kW) |
2 |
|
|
Flow Adjustment Range (LPM) |
0.3~15 |
|
|
Flow Measurement Accuracy (LPM) |
±0.1 |
|
|
Pump Configuration |
Dual-pump (one active, one standby) |
|
|
Power Supply |
AC380V 50Hz |
|
|
Maximum Power Consumption (kW) |
4.7 |
|
|
Design Pressure Rating (PSI/bar)*2 |
58/6 |
|
|
Test Pressure Rating (PSI/bar |
87/8 |
|
|
Shipping Weight (kg/lbs) |
680/1499 |
|
|
Operating Weight (kg/lbs) |
740/1631 |
|
|
Operating Temperature & Humidity |
0～50℃/ RH5～85% |
|
|
Storage Temperature & Humidity |
-20～65℃/RH5～95% |
|
|
External Interface Specifications |
M11*1 threaded port |
|
|
Power connector |
2*C14 |
|
|
Communication Interfaces |
RJ45 |
|
|
Communication Protocol |
Modbus RTU & Modbus TCP/IP |
|
|
Coolant Refill Port |
Barbed fitting ( Φ12.7 mm hose) |
|
|
Noise Level |
85dB(A) |
|
|
Exterior Color |
Pantone Cool Gray C11 |
|
