L10/L11 Vacuum-Based Quantitative Liquid Filling Equipment

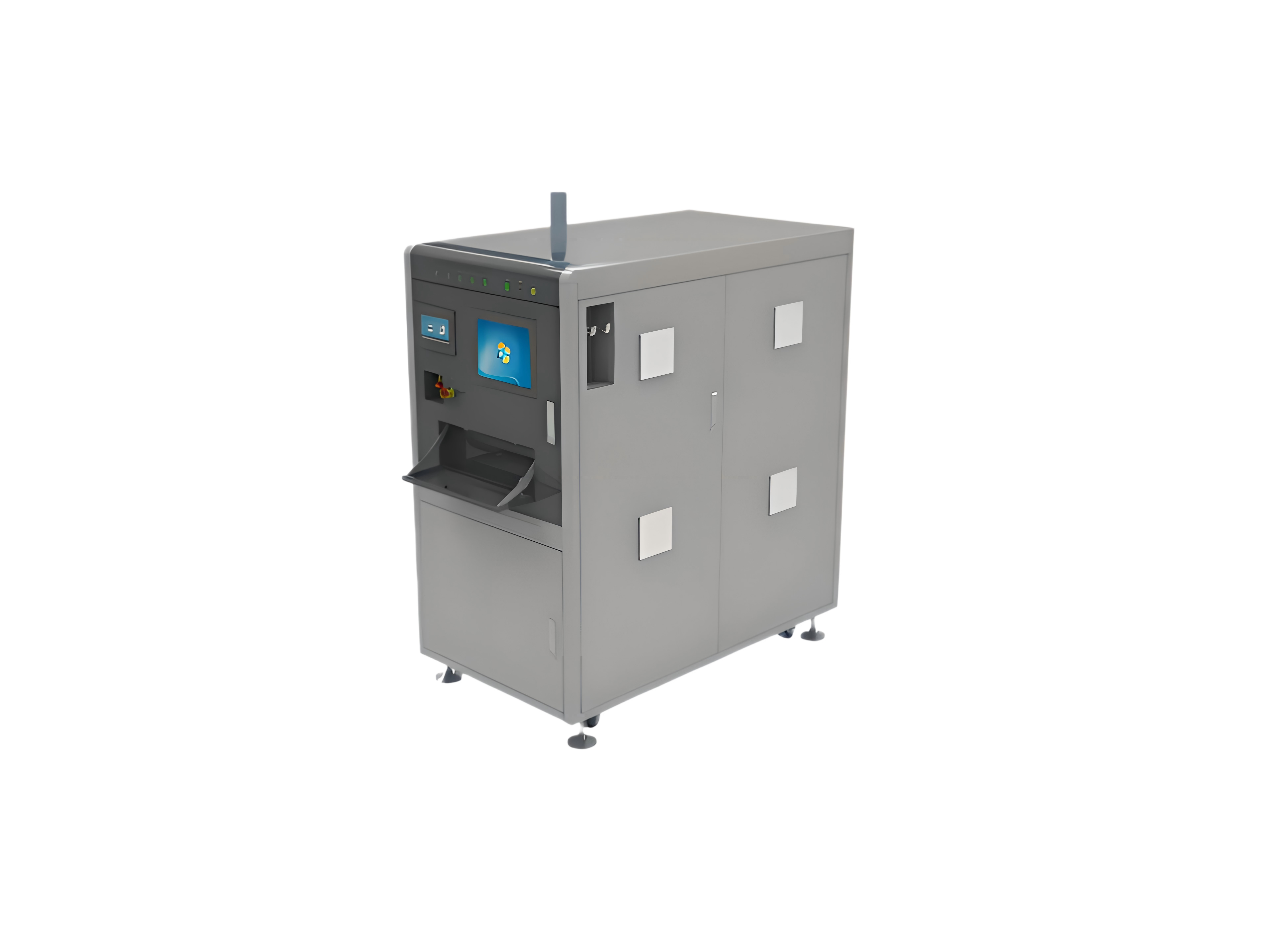

The L10/L11 Vacuum-Based Quantitative Liquid Filling Equipment is designed for vacuum-assisted liquid filling of liquid-cooled servers (L10) and rack-level liquid-cooled systems (L11). It supports simultaneous filling of two server racks or two individual nodes. The system incorporates a pre-filling vacuum evacuation function and integrates sensors for pressure, turbidity, pH, and conductivity, along with a 25 µm precision filter. With a maximum flow rate of 12 L/min, it accommodates a wide range of filling requirements. The equipment features high efficiency, a compact integrated design, and high measurement accuracy.

The system is controlled by a Siemens PLC, allowing filling time and acceptance criteria to be flexibly configured according to the product type. It is equipped with a 7-inch display and a 12.1-inch LCD monitor for real-time monitoring of process parameters and result evaluation. The integrated computer is pre-installed with host software and communicates with client ATE (Automatic Test Equipment) programs via a standard RJ45 interface, using Modbus TCP/IP as the default communication protocol.

PRODUCT FEATURES:

◆Dual-channel design enables simultaneous vacuum evacuation and quantitative liquid filling for two server racks or two nodes.

◆Inlet and outlet ports feature chuck-type or quick-connect fittings for easy installation and maintenance.

◆SUS304 stainless steel piping ensures durability and corrosion resistance.

◆High-precision metering pump provides accurate and stable liquid filling.

◆7-inch and 12.1-inch displays allow convenient data reading and parameter configuration.

◆Supports control via PLC or host software, with integrated monitoring of pressure, temperature, and humidity.

◆Built-in alarm system assists maintenance personnel in quickly identifying and resolving system anomalies.
