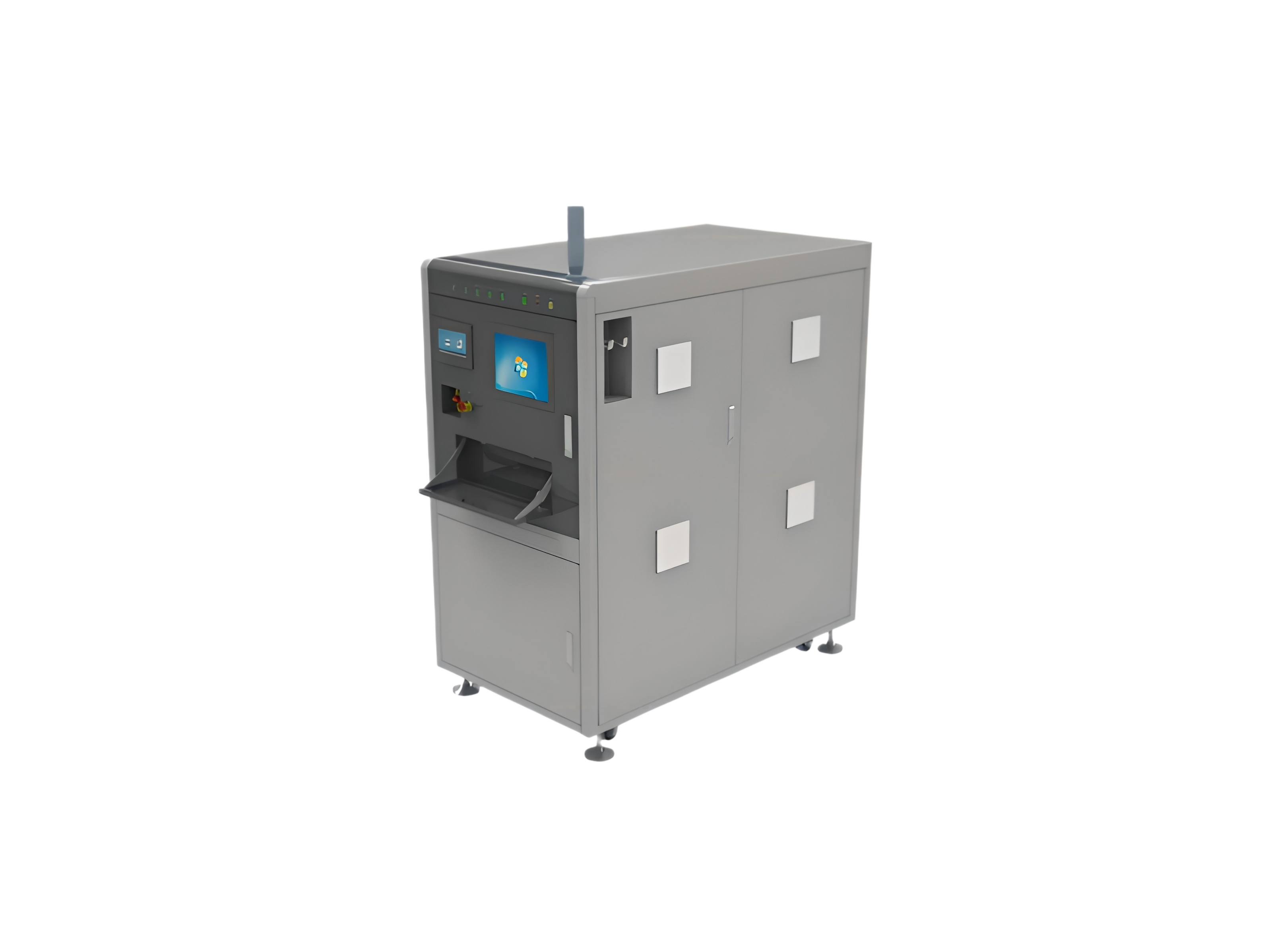

L10/L11 Drainage, Drying & Nitrogen Purging Equipment

This product is designed for draining, drying, and nitrogen purging of liquid cooling channels in liquid-cooled servers (L10) or liquid-cooled cabinets (L11) prior to packaging. It is capable of performing drainage, drying, and nitrogen purging for two racks and two nodes simultaneously. The equipment integrates temperature, humidity, and pressure instruments for monitoring. A proportional control valve is used for pressure regulation to ensure stable gas supply. It is equipped with a heater to control gas temperature, enhancing drying efficiency. An internal oil-free vacuum pump provides reliable performance and long service life.

The system is controlled by a Siemens PLC. Test duration and acceptance criteria can be flexibly configured based on the product type under test. It is equipped with a 7-inch display and a 12.1-inch LCD monitor for real-time monitoring of all test parameters and result evaluation. The integrated computer comes pre-installed with host software capable of communicating with client ATE (Automatic Test Equipment) programs. It uses a standard RJ45 communication interface, with Modbus TCP/IP as the default protocol.

PRODUCT FEATURES:

◆Dual-channel design supports simultaneous draining, drying, and nitrogen purging of two racks or two nodes.

◆Clamp-type or quick-connect fittings at all inlet/outlet ports simplify installation and maintenance.

◆All fluid pathways are constructed from SUS304 stainless steel for durability and corrosion resistance.

◆Oil-free vacuum pump ensures rapid evacuation prior to nitrogen filling.

◆7-inch and 12.1-inch displays provide clear access to real-time data and parameter settings.

◆Control via PLC or host software with integrated pressure, temperature, and humidity monitoring.

◆Built-in alarm system helps maintenance personnel quickly identify and locate system anomalies.
