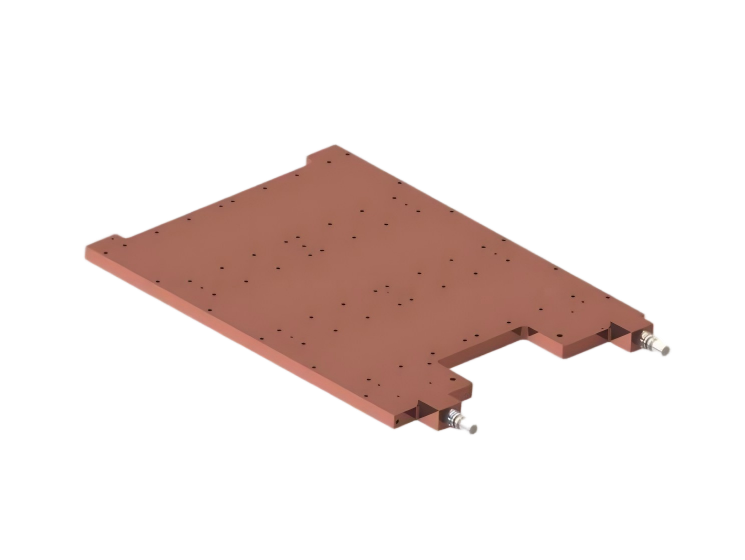

IGBT Cold Plate

The IGBT cold plate features a main body composed of a base plate and a cover plate, both made from high-purity Copper T2. After precision machining, the base and cover plates are joined into a single, integrated unit via vacuum brazing. Internal flow channels are machined directly into the cold plate. UQD06 quick-connect couplings at the inlet and outlet allow for faster and more convenient installation.

PRODUCT FEATURES：

◆High-purity copper construction ensures excellent thermal conductivity.

◆Integrated vacuum brazing provides superior reliability.

◆Optimized internal flow channels offer high flow rates with low resistance.

◆100% factory leak testing ensures system integrity.

◆Complete factory cleaning, drainage, and drying processes guarantee internal dryness.

IGBT COLD PLATE TECHNICAL PARAMETERS：
